The JetStream® has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32 cc hydraulic motor, powered by a supplied power pack with oil cooler.
The electronic monitoring system provides read-out of speed and distance, helps protect against duct obstructions and includes an emergency stop.The JetStream is adjustable to suit a wide range of cable diameters .23-.79 in (6-20 mm), and duct diameters of .75-1.50 in SDR (12 mm-50 mm OD).
Main Features
Automatic cable centralizing
Synchronous high grip profiled compliant drive belts
Tabletop design
Variable speed controls
Digital cable speed and length monitoring
Integral air valves and pressure gauges
Polycarbonate safety guarding
Low maintenance
Wheeled travel case
Tool kit
Specifications:
| Cable Diameter: | 23 to 79" (6-20 mm) |
| Duct Size (Outside Dia): | 75"-1.50" SDR (12-50 mm OD) |
| Cable Speed (Adjustable): | 0-280 ft/min (0-85m/min) |
| Air Pressure: | 215 psi (15 bar)450 cfm (12 m3/min) |
| Power Requirement: | Supplied hydraulic power pack |
| Width: | 19" (484 mm) |
| Length: | 24.5" (620 mm) |
| Height: | 9.2" (233 mm) |
| Net Weight: | 68 lbs (31 kgs) |
Supplied Power Pack with oil cooler
Power Pack Manual
P/N 32800 Weight: 145 lbs. (66 kg)

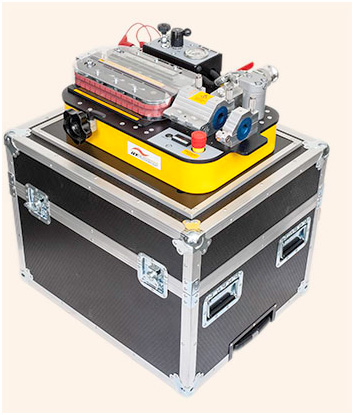

Case has wheels and pull out handle for transportation
