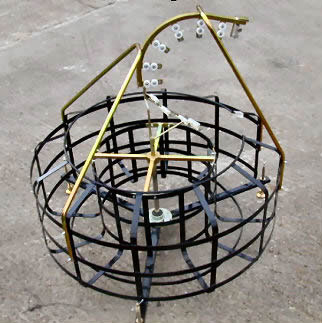

Micro Cable Fleeter

The Micro Cable Fleeter replaces the manual method of “figure eighting” cable at the midpoint and provides protection and security for the cable.
Following installation of the cable in the first leg of the duct route the balance of the cable is removed from the drum and fed into the “Fleeter”, thereby releasing the cable end ready for blowing into the second leg.
The Fleeter provides a smooth and simple system while ensuring cable protection from pedestrians or vehicles and prevents contamination from mud, soil or dust.
The Fleeter is designed to work in conjunction with the GMP Breeze or Air Stream Cable Blowing Machine, which provides the cable feed in and out of the “Fleeter”.

It has a nominal capacity to store 6500 ft. (2000 meters) of 8.5mm diameter cable.

Note: Please have your microduct O.D. available when ordering to select the correct duct clamp that's included with your purchase.

Specifications:
Cable diameter 5 – 8.5 mm (0.196” –0.334”) OD Max
Cable Length 6500 Feet (2000 Meters) of 8.5mm diameter cable
Microduct Size 8 mm - 18 mm ø

Dimensions
Basket Diameter 47.25” (1200 mm)
Max. Width 50.6” (1825 mm)
Height 55.9” (1420 mm)
Weight 99 lb (45 kg )
