Airstream(Electronic)micro cable blowing machine
2017/02/13
The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept

The Air Stream has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single person operation with safe, easy to operate ergonomic controls combines withlow maintenance and high reliability to form the machine’s key features. The Air Stream is adjustable to suit a wide range of cable diameters 2.5-11mm.

Specifications:

Cable Diameter: 2.5 to 11mm
Tube Size (Outside Dia): 5 to 18mm
Cable Speed (Adjustable): 0-260 ft/min (0-80m/min)
Air Pressure: 145-215 psi (10-15 Bar)
Power Requirement: 110/220 Volt AC
Width: 11.8" (300mm)
Length: 18" (460mm)
Height: 10.6" (270mm)
Net Weight: 31 lbs. (14kg)

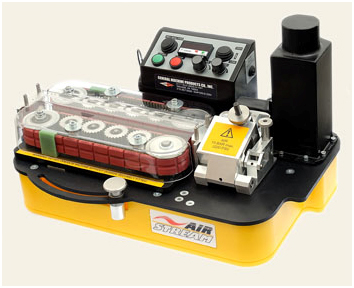

AirStream Cable Blowing Machine
P/N 89300 Weight: 31 lbs (14 kgs)
